The Red Rock Sound RE60 real time 1/3 octave Spectrum Analyser combines ease of use, accuracy and versatility in one economical, reliable unit.
Interface is modelled on classic DN60 spectrum analyzer by Klark Teknik, originally developed in 1980.

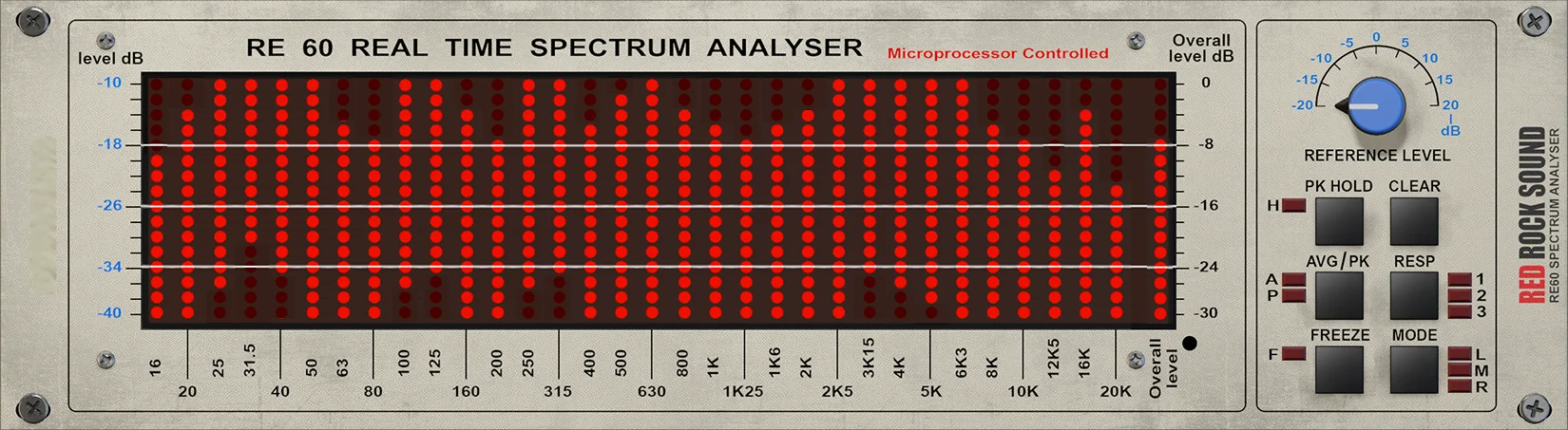

CONTROL CONNECTOR & INDICATOR FUNCTIONS:
DISPLAY. Levels relate to the reference level. Calibration of a display level is read from graticules on the left of the display window.
REFERENCE LEVEL. The absolute level to which display readings are relative, i.e. calibration, is given in dB
OVERALL LEVEL. Calibration of the overall level is similary derived from graticule to the right of the display. note - this graticule applies to the overall level only!
RESP. Speed of display response is selectable:
“1” fast, “2” medium, “3” slow, shown by three leds.
MODE. Controls the display mode:
“L” left, “M” mid, “R” right.
AVG/PK . Two Leds indicate whether the display is averaging or peak-reading.
PK. HOLD (MAX. HOLD). The maximum graphed value of the Frequency analysis can be shown by clicking the PK HOLD button. To reset the max graph, click the CLEAR button. To return to realtime
graphing, click the button PK HOLD again.
FREEZE. At any time, the Frequency graph can be stopped by clicking the Freeze button. To release and return to realtime
graphing, click the button again.
UPDATE HISTORY
New in 1.5.1:
- added auto-connect audio cables
- other small fixes and optimization
New in 1.5.0:
- added FREQUENCY BAND OUTPUTS
- other small fixes and optimization
New in 1.0.1:
- added new features: PK HOLD, AVG/PK, FREEZE
- fixed OVERALL LEVEL
